Product Description

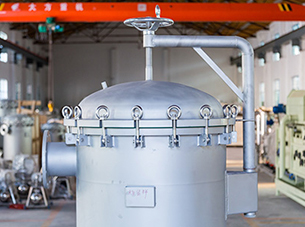

DZBL High-efficiency inclosed plate filter is a kind of leaf filter. It's a new generation of filter machine that our company designed and developed referencing foreign technology. It's a high-efficiency, energy-saving, and closed-operation precision clarification equipment. with characteristics of small size, high efficiency, good filtrate transparency and clarity, no material consumption, etc. It doesn't consume any filter paper, filter cloth or filter cartridges.

The filter can be widely applicable to:

Grease Industry (Such as crude oil filtration, gum oil filtration, hydrogenated oil filtration, winterization oil filtration, etc.)

Food Industry (Such as activated carbon decolorization of granulated sugar and glucose. clarification filtering of wine, juice, beverage, etc.),

Chemical Industry (Such as crystal separation in petrochemical industry, inorganic chemical industry, and organic chemical industry; separation of catalyzers, decolorization of chemical products, etc.)

Environmental Protection Industry (Such as water intake from rivers and lakes, supernatant purification of sewage treatment plant, purification of swimming pool water, etc.)

Click to expand to view the data

Model	Filter area（㎡）	Filter cake volume(L)	Processing power（t/h）			Workpressure（Mpa）	Filtering cylinder volume(L)	Import Export	Overflow port	Discharging outlet	Cylinder diameter(mm)	Barrel height(mm)	Filter spacing（mm）	Host weight（Kg）	Projection area（mm）
Model	Filter area（㎡）	Filter cake volume(L)	Grease	Resin	Drinks	Workpressure（Mpa）	Filtering cylinder volume(L)	Import Export	Overflow port	Discharging outlet	Cylinder diameter(mm)	Barrel height(mm)	Filter spacing（mm）	Host weight（Kg）	Projection area（mm）
DZBL-2	2	30	0.4-0.6	1-1.5	1-2	0.1-0.4	120	DN25	DN25	DN100	400*3	1280	50	150	500×70
DZBL-4	4	60	0.8-1.2	2-3	2-4		250	DN40	DN25	DN125	500*3	1520	50	180	600×800
DZBL-7	7	105	1.4-2	3-5	4-8		420	DN40	DN25	DN150	600*3	1920	50	326	750×100
DZBL-10	10	150	2-3	5-8	5-10		890	DN50	DN25	DN200	800*4	2120	70	474	1000×1200
DZBL-12	12	240	2.4-3.6	6-9	6-12		1190	DN50	DN40	DN250	900*4	2220	70	554	1200×1300
DZBL-15	15	300	3-5	7-12	8-16		1580	DN50	DN40	DN250	1000*5	2370	70	815	1400×1500
DZBL-20	20	400	4-6	10-15	10-20		1770	DN65	DN40	DN250	1000*5	2670	70	910	1400×1500
DZBL-25	25	500	5-7	12-18	12-24		2200	DN65	DN40	DN300	1100*6	2740	70	1024	1500×1700
DZBL-30	30	600	6-9	14-22	15-30		2770	DN65	DN40	DN300	1200*6	2870	70	1165	1600×1800
DZBL-36	36	720	7-10	16-24	18-36		2870	DN80	DN50	DN300	1200*6	2970	70	1202	1600×1800
DZBL-40	40	800	8-12	20-30	20-40		3500	DN80	DN50	DN350	1300*6	3070	70	1342	1700×1900
DZBL-45	45	900	9-13	22-32	22-44		3630	DN100	DN50	DN350	1300*6	3270	70	1422	1700×1900
DZBL-52	52	1040	10-15	25-40	26-52		4380	DN100	DN50	DN350	1400*6	3370	75	1900	1800×2000
DZBL-60	62	1200	12-18	38-42	30-60		5100	DN100	DN50	DN400	1500*8	3530	75	2114	2000×2200
DZBL-70	70	1400	14-20	35-50	35-70		6940	DN125	DN50	DN400	1600*8	4220	80	2662	2200×2400
DZBL-80	80	1600	16-24	40-60	40-80		8300	DN125	DN50	DN400	1800*8	4220	80	3882	2400×2600
