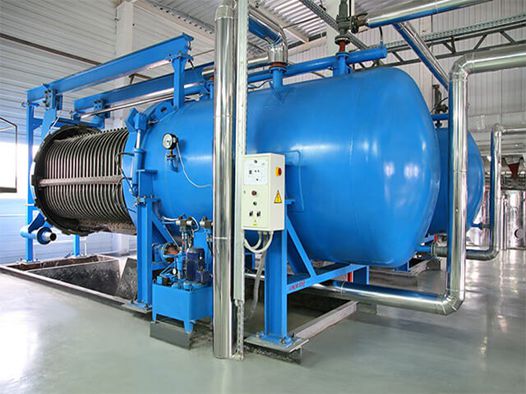

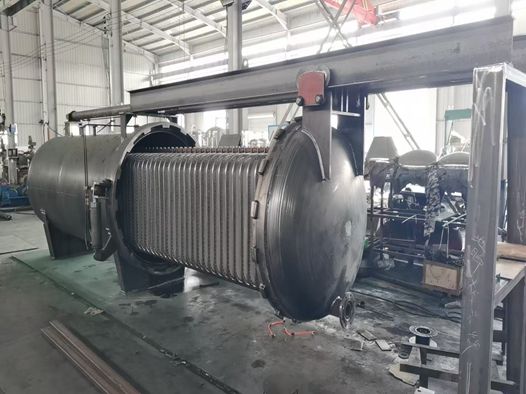

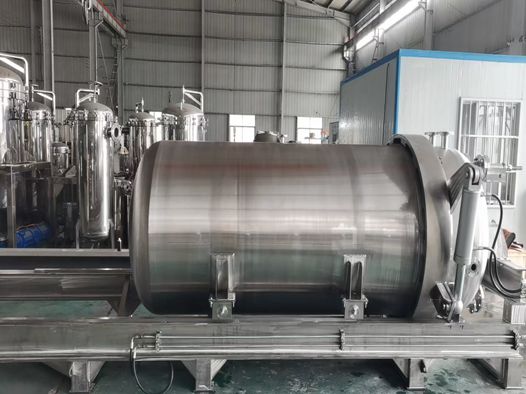

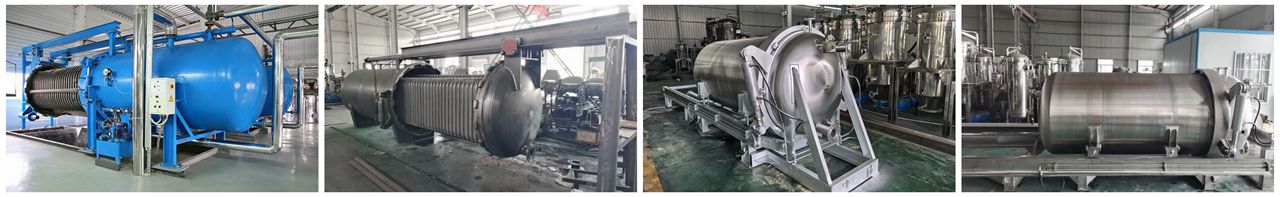

Horizontal Leaf Filter
-
Filter Area
2-200 ㎡ -
Filter precision
10-200(μm) -
Max Flow
1-800(t/h)
Product Description
The horizontal leaf filter is a high-efficiency, energy-saving, and fully enclosed precision filtration unit. It is widely used in industries such as chemicals, petroleum, food processing, and pharmaceuticals.
Horizontal leaf filter adopts a horizontal tank with drawer-type filter leaves, excelling in large filtration area (up to 300㎡) and thorough slag discharge capabilities. They are better suited for large-flow continuous production in petrochemical and bulk chemical industries, capable of handling high-viscosity, easily caking complex materials such as FCC slurry and PTA slurry.
Applicaton of Horizontal Leaf Filter
Oils: Crude oil, bleaching earth, hydrogenated oil, winterized oil, hard fats, fatty acids, etc.
Food: Gelatin, vinegar, starch, sugar syrup, sweet water, etc.
Minerals: Coal slurry, clean coal, etc.
Petrochemical products: Diesel, lubricating oil, paraffin wax, mineral oil, sulfur products, etc.
Advantages of Horizontal Leaf Filter
Fully enclosed filtration with no leakage or environmental pollution.
Automatic pull-out mechanism for the filter leaf assembly, facilitating easy inspection and cleaning.
Double-sided filtration, offering a large filtration area and high solids-holding capacity.
Vibration-based discharge of filter cake, reducing labor intensity.
Hydraulic control system for automated operation.
Capability to be configured as a large-capacity, large-surface-area filtration system.
| Model | Filter cake volume | Processing power | Workpressure | Filtering cylinder volume | I/O Connection | Discharging outlet | Filter spacing | Weight | ||
| Grease | Resin | Drinks | ||||||||
| YWBL-2 | 30L | 0.4-0.6(t/h) | 1-1.5(t/h) | 1-2(t/h) | 0.1-0.4(Mpa) | 120L | DN25 | DN100 | 50mm | 150Kg |
| YWBL-4 | 60L | 0.8-1.2(t/h) | 2-3(t/h) | 2-4(t/h) | 250L | DN40 | DN125 | 50mm | 180Kg | |
| YWBL-7 | 105L | 1.4-2(t/h) | 3-5(t/h) | 4-8(t/h) | 420L | DN40 | DN150 | 50mm | 326Kg | |
| YWBL-10 | 150L | 2-3(t/h) | 5-8(t/h) | 5-10(t/h) | 890L | DN50 | DN200 | 70mm | 474Kg | |
| YWBL-12 | 240L | 2.4-3.6(t/h) | 6-9(t/h) | 6-12(t/h) | 1190L | DN50 | DN250 | 70mm | 554Kg | |
| YWBL-15 | 300L | 3-5(t/h) | 7-12(t/h) | 8-16(t/h) | 1580L | DN50 | DN250 | 70mm | 815Kg | |
| YWBL-20 | 400L | 4-6(t/h) | 10-15(t/h) | 10-20(t/h) | 1770L | DN65 | DN250 | 70mm | 910Kg | |
| YWBL-25 | 500L | 5-7(t/h) | 12-18(t/h) | 12-24(t/h) | 2200L | DN65 | DN300 | 70mm | 1024Kg | |
| YWBL-30 | 600L | 6-9(t/h) | 14-22(t/h) | 15-30(t/h) | 2770L | DN65 | DN300 | 70mm | 1165Kg | |
| YWBL-36 | 720L | 7-10(t/h) | 16-24(t/h) | 18-36(t/h) | 2870L | DN80 | DN300 | 70mm | 1202Kg | |
| YWBL-40 | 800L | 8-12(t/h) | 20-30(t/h) | 20-40(t/h) | 3500L | DN80 | DN350 | 70mm | 1342Kg | |
| YWBL-45 | 900L | 9-13(t/h) | 22-32(t/h) | 22-44(t/h) | 3630L | DN100 | DN350 | 70mm | 1422Kg | |
| YWBL-52 | 1040L | 10-15(t/h) | 25-40(t/h) | 26-52(t/h) | 4380L | DN100 | DN350 | 75mm | 1900Kg | |
| YWBL-60 | 1200L | 12-18(t/h) | 38-42(t/h) | 30-60(t/h) | 5100L | DN100 | DN400 | 75mm | 2114Kg | |
| YWBL-70 | 1400L | 14-20(t/h) | 35-50(t/h) | 35-70(t/h) | 6940L | DN125 | DN400 | 80mm | 2662Kg | |
| YWBL-80 | 1600L | 16-24(t/h) | 40-60(t/h) | 40-80(t/h) | 8300L | DN125 | DN400 | 80mm | 3882Kg | |
