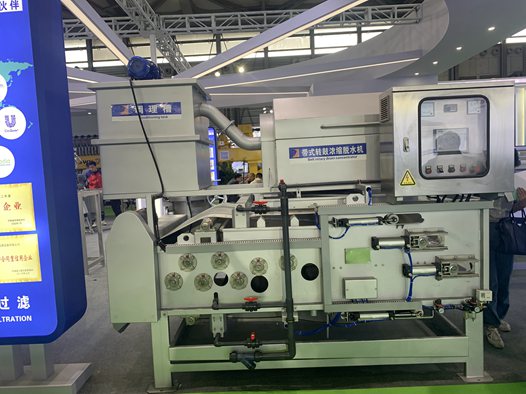

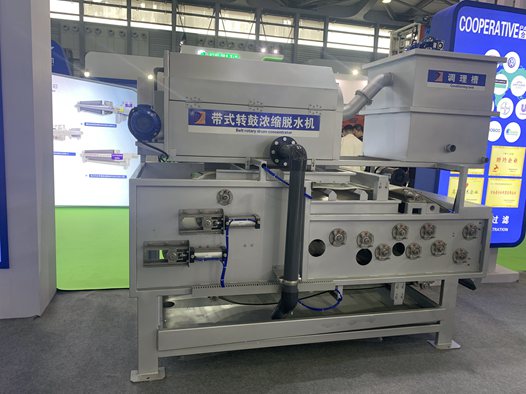

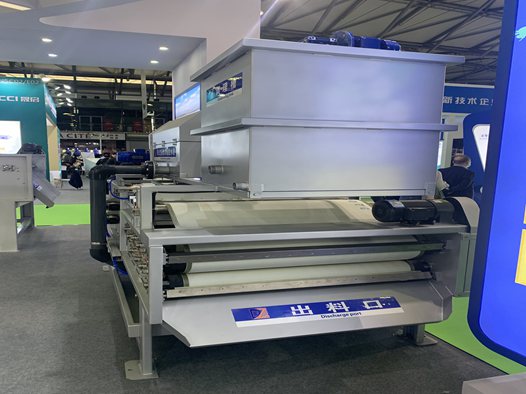

Drum Concentrating Belt Filter Press
-
Filter Area
20-500㎡ -
Models
Full Models -
Mositure Content
60-83%
Product Description
Belt filter press, also known as belt filter, is a kind of industrial machine used for solid-liquid separation processes. It is widely used for sludge thickening and dewatering in many industries. It is featured with continuous working, high filtration efficiency, easy operation and maintenance and other advantages.
Main application fields and materials can be processed:
Wastewater Treatment: Municipal sewage, electroplating wastewater, river sludge, oil field sludge, artificial sand wastewater, printing and dyeing wastewater, leather wastewater, papermaking wastewater, iron and steel wastewater, etc.
Chemical Industry: Calcium carbonate, titanium dioxide, white carbon black, petrochemical industry, etc.
Mining Industry: Coal, iron ore, copper ore, zinc, cobalt ore, non-ferrous metal recovery, slag, tailings treatment, kaolin, ceramics, etc.
Food Industry: Sugar, beer, wine, oil, etc.
Pharmaceutical industry: Widely used in fermentation broth, enzyme preparations, sewage treatment and other sections.
Smelting industry: Electrolytic copper, electrolytic zinc, electrolytic manganese, nickel, vanadium titanium, alumina, etc.
In addition to the mentioned above, filter press also can be used in many other industries for kinds of solid-liquid separation needs. If you have any needs, please feel free to inquiry us for professional solution.
According to different structure, our belt filter press include drum concentrating belt filter press, filter belt type belt filter press, heavy carbon steel belt filter press. We will provide customized solution for you according to your specific needs.
Advantages of Belt Filter Press
In the transition dewatering zone, this machine uses a large diameter circular arc dewatering technology which is specially designed. It can make the filter belt pressure gradually increase and effectively prevent the phenomenon of running mud. Therefore, this machine can greatly improve the treatment of sludge.
It is equipped with a concentration pre-processing equipment, which has a better flocculation effect and reduces operating costs.
Different filter bands can be selected based on various materials, with high precision. According to the different feed concentration, the types of belt filter press to choose from.
With better dewatering effect and high efficiency,it is well received by the market. More projects arond the world, such as Pakistan, Indonesia, Singapore, Thailand, Phillipine, Malaysia, Sri Lanka, Saudi Arabic, Turkey, South Africa, Kenya, Nigeria, etc. We also have other types of filter presses for slurry processing.
Product video
| Model | Belt Width(mm) | Capacity(m3/h) Inlet Concentration (s.s.1.5~2.5%） | Dry Solid(kg/hr) | Cake Moisture(%) | Power(Kw) | S.S.Tray | Reference Dimensions(mm) | Foundation Dimensions(mm) | (kgs) Weight(kgs) | ||||
| Power of Driving Motor | Mixing Power | Thickener Power | L | W | H | ||||||||
| DNY500 | 500 | 3.0-5.2 | 45-78 | 63-84.5 | 0.75 | 0.37 | 0.37 | YES | 2600 | 1050 | 2175 | 2100*836 | 800 |
| DNY750 | 700 | 4.5-7.5 | 68-113 | 0.75 | 0.37 | 0.37 | YES | 2600 | 1300 | 2175 | 2100*1086 | 1000 | |
| DNY1000 | 1000 | 6.5-10.5 | 98-158 | 0.75 | 0.37 | 0.37 | YES | 2600 | 1550 | 2270 | 2100*1336 | 1210 | |
| DNY1250 | 1250 | 7.5-12.5 | 113-188 | 0.75 | 0.37 | 0.37 | YES | 2600 | 1800 | 2270 | 2100*1586 | 1450 | |
| DNY1500 | 1500 | 9.5-16 | 143-240 | 0.75 | 0.55 | 0.55 | YES | 2600 | 2050 | 2270 | 2100*1836 | 1850 | |
| DNY1500L | 1500 | 12-20.5 | 180-308 | 0.75 | 0.55 | 0.55 | YES | 3190 | 2300 | 2510 | 2100*1866 | 2200 | |
| DNY1750 | 1750 | 15-24.5 | 225-368 | 0.75 | 0.55 | 0.55 | NO | 3190 | 2300 | 2510 | 2455*2096 | 2450 | |
| DNY2000 | 2000 | 18-30 | 270-450 | 0.75 | 0.55 | 0.55 | NO | 3190 | 2550 | 2510 | 2455*2346 | 2850 | |
| DNY3000 | 3000 | 40-55 | 360-675 | 1.5 | 0.55 | 0.55 | NO | 4300 | 3550 | 2850 | 3800*3310 | 3600 | |
| Remark | Decided by the nature of wastewater | Can be customized | We will be supply with drawings | ||||||||||
